Compact Wireless Optical Probing
NimProbe is a wireless optical probe and portable CMM solution for metrology-grade inspection and GD&T measurement. It enables fast, reliable feature capture (holes, edges, slots and hidden points) and supports a seamless workflow for probing and large-area scanning within one system.
Overview
NimProbe is designed for teams that need a flexible 3D probing system to measure geometric features and GD&T quickly, without the limitations of mechanical arms or cables. Within the tracker’s field of view, the probe moves freely while its position and orientation are tracked in real time—supporting measurement of hole locations, flatness, parallelism and other critical tolerances.
The system combines high-precision probing with large-area 3D scanning in a single workflow. Operators can capture point clouds with speed and precision, then switch seamlessly between scanning and probing to handle complex inspection tasks efficiently.
Key Features & Benefits
High-Precision Probing
- Accurate capture of holes, edges, slots and reference features on complex parts
- Suitable for feature-based inspection and GD&T verification
- Supports consistent results in production and quality environments
Seamless Probing to Scanning
- Two-in-one workflow combining probing and handheld scanning
- Capture point clouds for fast coverage, then probe critical features for high-confidence inspection
- Unified data capture for faster inspection cycles and improved throughput
Continuous Measurement in Large Volumes
- Real-time tracking within the optical tracker’s field of view
- Ideal for large parts, assemblies, fixtures and in-situ measurement tasks
- Efficient multi-angle probing and cross-station measurement with minimal setup
Wireless Freedom

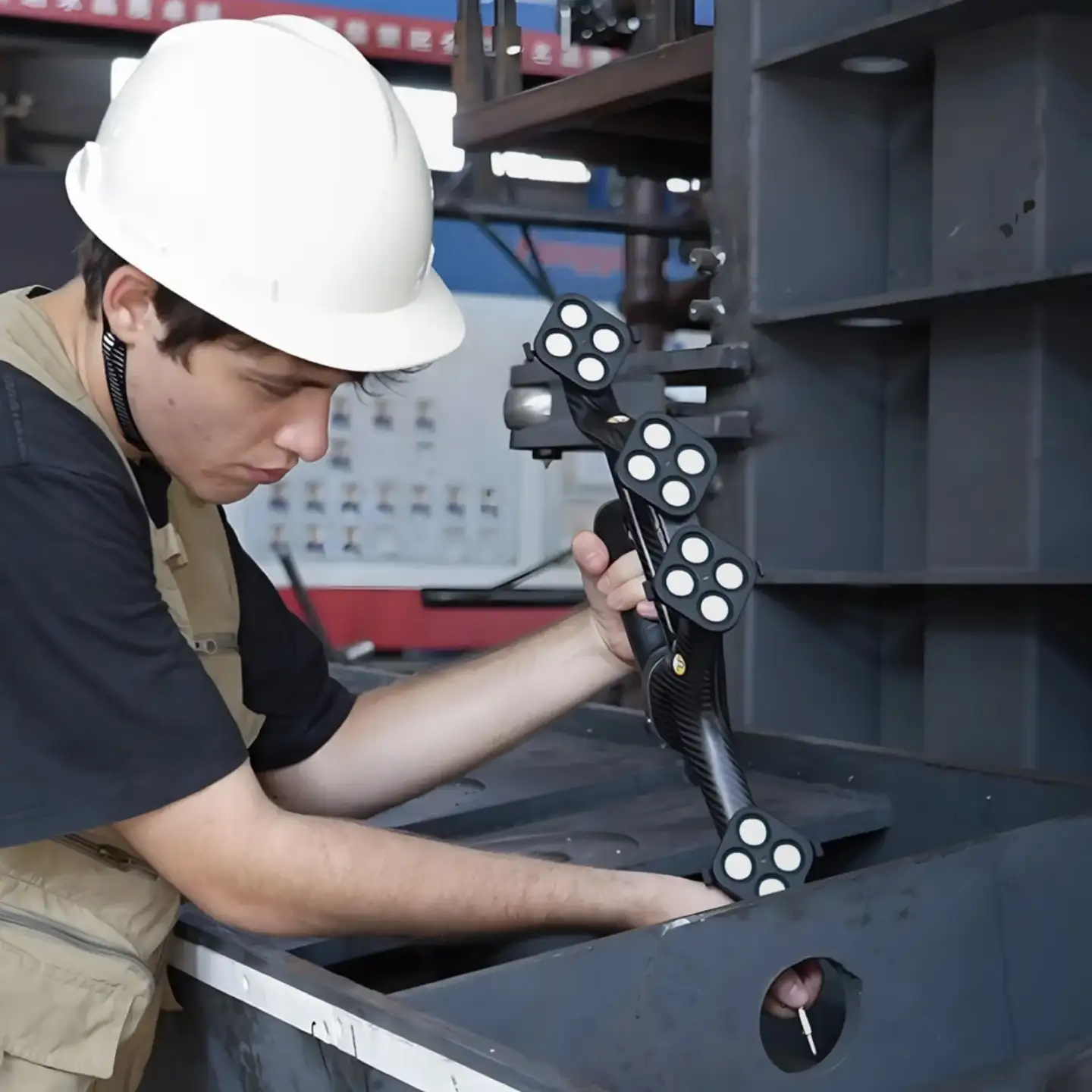

- Access hidden points and hard-to-reach areas without cables or mechanical joints
- 500 mm probe length supports deep access to reference holes and concealed points
- Designed for on-site measurement, shop-floor inspection and demanding environments
Compact & Portable
- Lightweight ergonomic probe suitable for extended use
- Complete probing and scanning solution can be stored in a single protective case
- Fast deployment for mobile inspection and service work
Typical Applications for GD&T and Large-Volume Probing
- Feature measurement (holes, slots, edges, grooves) using a wireless portable CMM
- GD&T inspection including flatness, parallelism and positional verification
- On-site inspection and measurement where cable-free operation is beneficial
- Large-volume probing of assemblies, fixtures, pipelines and machinery
- Production support for benchmark marking, setup validation and dimensional control
Specifications
| Specification | Value |
|---|---|
| Type | NimProbe |
| Volumetric Accuracy (ISO 10360-2) | 0.059 mm (3.5 m) 0.072 mm (4.2 m) |
| Measurement Distance (per tracker) | 4.2 m |
| Recommended Part Size Range | 0.1 m – 6 m |
| Probe Dimensions | 510 × 145 × 89 mm |
| Probe Weight | 700 g |
| Operating Temperature | 0 – 45 °C |
| Operating Humidity (non-condensing) | 10% – 90% RH |
| Connection | Wireless |
| Number of Targets | 16 |
Specification values depend on configuration, calibration and application conditions.
